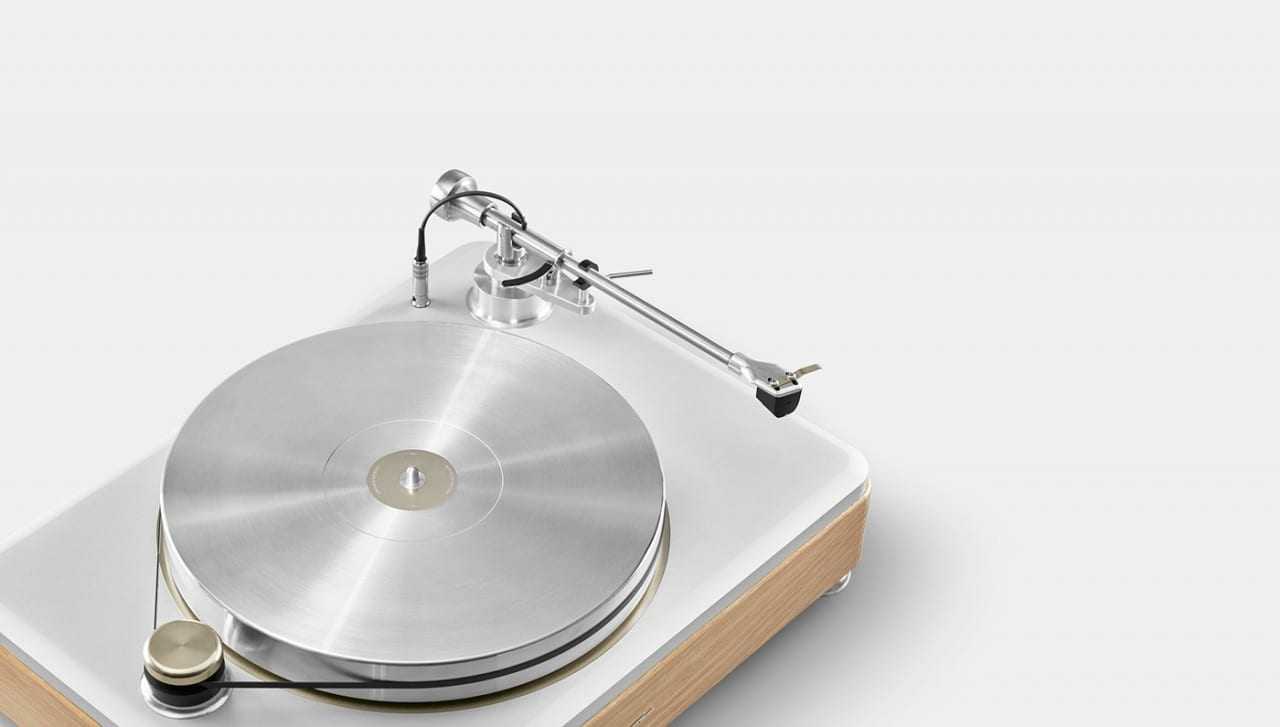

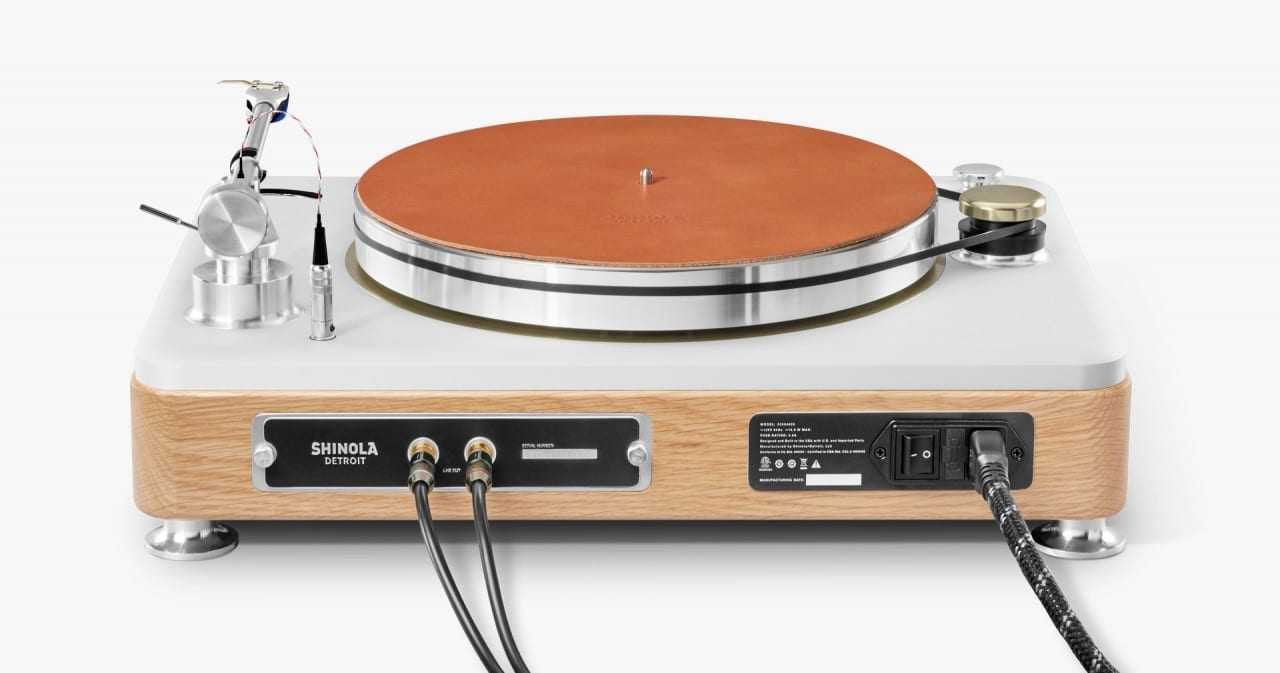

Το πρώτο audio προϊόν της Shinola είναι αυτό. Το υπέροχο The Runwell Turntable. Μόλις 500 τεμάχια. Χαρακτηριστικά;
Wow and Flutter: < 0.1%
Gain: 35.4DB @ 1KHZ
RIAA Conformance Deviation: LESS THAN +/- 0.25DB, 20HZ TO 20 KHZ, EXCLUSIVE OF INFRASONIC FILTER AT 13HZ
Input Overload: > 200MV AT 1KHZ
Input Impedance: 47KOHM IN PARELLEL WITH 200PF
Signal-to-noise Ratio exclusive of cartridge intrinsic noise, unweighted: > 82DB
Gain 1kHz MM: 35.4DB (JUMPERS OPEN)
Gain 1kHz MC: 55.1DB (JUMPERS INSTALLED)
Termination impedance, MM gain resistive: 47KOHM, VIA SYNTHETIC COOLED TERMINATION
Equivalent temperature of 47kohm input termination, midband: < 20 DEGREES KELVIN
Termination impedance, capacitive: 200PF ON BOARD
Termination impedance, MC gain resistive: INSTALLED ON INPUT PADS PER CARTRIDGE REQUIREMENTS
EQ characteristic: RIAA STANDARD
Infrasonic filter: SECOND-ORDER MAXIMALLY-FLAT, -3DBR AT 13HZ
Line-level output resistance: 49.9 OHMS, UNMATED
Overload margins: > 32DB AT ANY FREQUENCY FROM 20HZ TO 20KHZ, BASED ON REFERENCE LEVELS OF 5MV RMS AT 1KHZ, 500UV RMS AT 20HZ, 50MV RMS AT 20KHZ
Output noise, MM gain, at various analyzer filter bandwidths and 75 ohm generator Z:
22HZ TO 22KHZ: 22UV RMS
100HZ TO 22KHZ: 12UV RMS
400HZ TO 22KHZ: 8.6UV RMS
Output noise, MC gain, 10 ohm generator Z:
22HZ TO 22KHZ: < 220UV RMS
100HZ TO 22KHZ: < 120UV RMS
400HZ TO 22KHZ: < 86UV RMS
Power consumption from mains input, preamp only enabled: < 8W
Distortion at noise-versus-distortion inflection point: < 0.001%
