Η τάση για επιστροφή στο βινύλιο έχει δώσει ώθηση και στην επιστροφή στο παλιό αλλά καλό hi fi. Μια νέα σειρά από προϊόντα έρχεται να μας φέρει και η κ.Pioneer, με τα A-50DA και A-70A να υπόσχονται απλά κυκλώματα, καλά υλικά, λογικές τιμές και Japan ούγια…
Ακόμη έχεις: symmetrical XLR, low-loss loudspeaker volume control, Quad-DSD (11.2 MHz), MOSFET Class D ενισχυτή με 90 watts, PCM με 384 kHz και 32 bit, full-metal χειριστήριο και 17 κιλά βάρος!

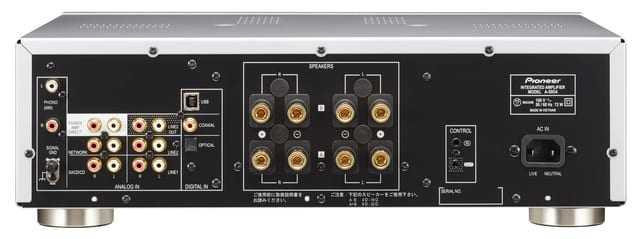

The A-70DA, which weighs more than 17 kilos, is not just about mass, it is above all about class: Separate mains transformers for pre-amplifier and amplifier sections, above all when they are individually cast and shielded as here, provide not only weight, but also working conditions with unsurpassed low interference for the audio circuitry. The doubled A-70DA is worth it because its pre-amplifier has a completely symmetrical layout. An individual, particularly low-loss loudspeaker volume control was even integrated for the symmetrical XLR input. Via its digital inputs the A-70DA is equipped for all modern music formats. In this respect, the very highest resolutions, such as Quad-DSD (11.2 MHz) and PCM with 384 kHz and 32 bit, are supported via USB. The high-resolution counterparts in the analog world are exclusive MC pick-ups which, thanks to the a switchable phono stage, supply this top model just as precisely as the widespread MM systems. With its doubled chassis, the full-metal loudspeaker knob and the thick aluminium front and side panels, the casing guarantees a suitably high-class performance.
- 90 W + 90 W (20 Hz-20 kHz, THD 0.5 %, 4 ohms)
- 65 W + 65 W (20 Hz-20 kHz, THD 0.5 %, 8 ohms)
- THD: 0.02 % (Rated Output -3 dB, 8 ohms, 1 kHz)
- Guaranteed Speaker Impedance: 4-16 ohms (A or B), 8-32 ohms (A+B), 4-16 ohms (Bi-Wiring)
- Frequency Response (Measured with DIRECT button switched on): SACD/CD, NETWORK, LINE1, LINE2 5 Hz-50 kHz, ±3 dB
- RIAA Deviation: PHONO MM 20 Hz-20 kHz, ±0.5 dB, PHONO MC 20 Hz-20 kHz, ±0.5 dB
- Signal-to-Noise Ratio (IHF, A Network, Short Circuited)
SACD/CD: 101 dB
Phono: 89 dB (MM: 5 mV input)/74 dB (MC: 0.5 mV input)
Power Amp Direct: 110 dB - Channel Separation
SACD/CD: 90 dB (100 Hz), 84 dB (1 kHz), 75 dB (10 kHz)
Power Amp Direct: 95 dB (100 Hz), 95 dB (1 kHz), 80 dB (10 kHz) - Pure Audio Grade High Efficiency Power ›› MOSFET Amplifier (Class D Amplifier)
- Fully-Balanced Preamplifier Circuitry
- Separated Construction for Preamp and Power Amp
- Source Direct Mode
- Highly Acclaimed ESS SABRE32 Ultra DAC
- 384 kHz/32-bit USB-DAC for Asynchronous Transfer
- Shielded Twin Transformer for Preamp and Power Amp
- Trans-Stabilizer
- Speaker A, B, A+B Selector
