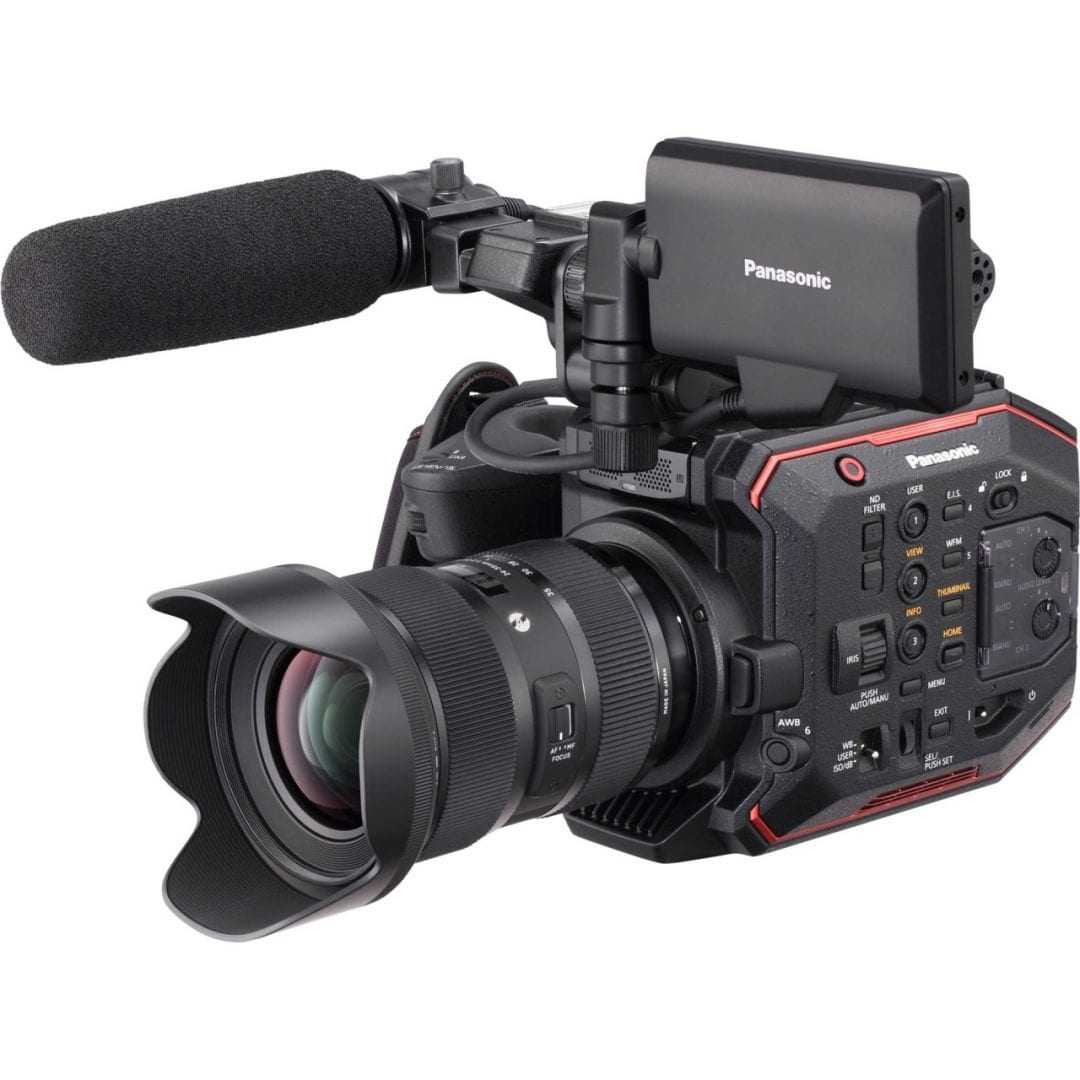

Νέο πολύ ενδιαφέρον μοντέλο ρίχνει στην αγορά η Panasonic. Είναι το EVA1 που γράφει σε πολλά formats και compression rates, μέχρι και 10bit 4:2:2 σε 4K!
Για in-camera εγγραφή, έχεις: DCI 4K (4096 x 2160), UHD (3840 x 2160), 2K (2048 x 1080), Full HD (1920 x 1080) και HD (1280 x 720). Σε δε μελλοντικό firmware upgrade, το EVA1 θα προσφέρει και All Intra compression για in-camera εγγραφή αλλά και 5.7K RAW έξοδο. Ακόμη:
In S35 Mode 4096 x 2160 (4K) .MOV
422 Intra 400 Mbps (VBR) 29.97p, 24p, 25p, 23.98p (Firmware Update)
422 LongGOP 150Mbps (VBR) 29.97p, 24p, 25p, 23.98p
420 LongGOP 150M (VBR) 59.94p, 50p
420 LongGOP 100M (VBR) 29.97p, 25p, 23.98p
In S35 Mode 3840 x 2160 (UHD) .MOV
422 Intra 400 Mbps (VBR) 29.97p,25p, 23.98p (Firmware Update)
422 LongGOP 150Mbps (VBR) 29.97p, 25p, 23.98p
420 LongGOP 150M(VBR) 59.94p, 50p
420 LongGOP 100M (VBR) 29.97p, 25p, 23.98p
In S35 Mode 2048 x 1080 (2K) .MOV
422 Intra 200 Mbps (VBR) 59.94 50p (Firmware Update)
422 Intra 100Mbps (VBR) 29.97p, 24p, 25, 23.98p (Firmware Update)
422 LongGOP 100Mbps (VBR) 59.94p, 50p
422 LongGOP 50M (VBR) 29.97p, 24p, 25p, 23.98p
420 LongGOP 100M (VBR) 59.94p, 50p
420 LongGOP 50M (VBR) 59.94p, 50p
In S35 Mode 1920 x 1080 (FHD) .MOV
422 Intra 200 Mbps (VBR) 59.94 50p (Firmware Update)
422 Intra 100Mbps (VBR) 29.97p, 24p, 25, 23.98p (Firmware Update)
422 LongGOP 100Mbps (VBR) 59.94p, 50p
422 LongGOP 50M (VBR) 29.97p, 25p, 23.98p
420 LongGOP 100M (VBR) 59.94p, 50p
420 LongGOP 50M (VBR) 29.97p, 25p, 23.98p
For high-speed capture, the EVA1 offers up to 59.94fps/50fps for 4K/UHD, up to 120fps/100fps for 2K/Full HD, or 240fps/200fps (cropped area). All internally recorded.
2K/VFR Mode with Intra Codec will come later in a firmware update.
S35: 4K/UHD 60 fps/50 fps 2K/HD 120 fps/100 fps
Cropped Mode (4/3″) 2K/HD 240 fps/200 fps
I’m not surprised that 60p in UHD with 10bit 4:2:2 isn’t an internal option, since the bigger guns like the VariCam and VariCam LT handle those and more. However the option to have full 4K and UHD at 10bit 4:2:2 in 29.97, 24p and 23.976 with a VBR of 400Mbps is impressive. Unfortunately this codec won’t be available until a later date with a firmware update.
With an active resolution of 5720 x 3016, the EVA1 delivers more than 17.25 million photosites, nearly double the 8.8 million needed for DCI 4K (4096 x 2160). By starting at a higher native resolution, the 5.7K sensor yields a higher resolving image when downsampled to 4K, UHD, 2K, or even 720p. Panasonic also claim that the increased color information results in a finer, more accurate finished image.
HDMI AND SDI OUTPUT
SDI OUT: BNC x 1, SDI REC REMOTE is supported 0.8 V [p-p], 75 Ω, 4K (6G), HD (3G/1.5G) Output format (4:2:2 10 bit)
4096 x 2160: 29.97p, 25p, 24p, 23.98p
3840 x 2160: 29.97p, 25p, 24p, 23.98p
1920 x 1080 : 59.94p, 50p, 59.94i, 50i, 29.97p, 29.97PsF, 25p, 25PsF, 24p, 24PsF, 23.98p, 23.98PsF
1280 x 720p: 59.94p, 50p
RAW Output 10bit
5760 x 3072: 29.97p, 25p, 24p, 23.98p
4096 x 2160: 59.94p, 50p, 29.97p, 25p, 24p, 23.98p,
HDMI OUT: HDMI x 1, TypeA, HDMI REC REMOTE is supported, Viera Link is NOT supported
4096 x 2160:59.94p, 50p, 29.97p, 25p, 24p, 23.98p
3840 x 2160: 59.94p, 50p, 29.97p, 25p, 24p, 23.98p
1920 x 1080 : 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 24p, 23.98p
1280 x 720p: 59.94p, 50p
720×576: 50p
Output format (4:2:0 8 bit): • 4096 x 2160: 59.94p, 50p • 3840 x 2160: 59.94p, 50p
DUAL NATIVE ISO
Το μοντέλο έχει dual native ISO 800 με 2,500 για low light καταστάσεις ενώ η Panasonic δίνει στο EVA1 14 stops dynamic range και full V-Log/V-Gamut λήψη. Το V-Log έχει log curve HDR ready χαρακτηριστικά και V-Gamut color space σε BT.2020.
